Product Overview

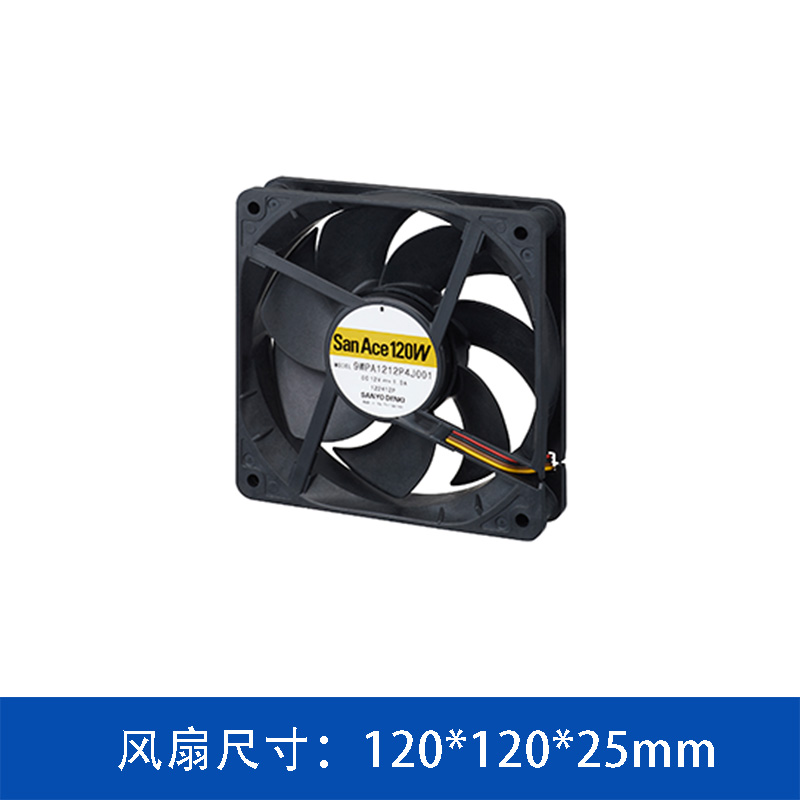

San Ace 120W Splash Proof Fan - Model 9WPA1212G40011
Enhance the reliability of your cooling systems with the San Ace 9WPA1212G40011, a high-performance DC axial fan designed by SANYO DENKI. Engineered for harsh environments, this fan features IP68 ingress protection, making it completely dust-tight and protected against continuous immersion in water.
Whether for outdoor telecommunications equipment, automotive applications, or washdown environments in food processing, the San Ace 120W series delivers consistent airflow and static pressure where standard fans fail.
Key Features & Benefits
-
Ultimate Protection (IP68): Fully sealed construction (resin potting) protects internal components from water, dust, and corrosive elements.
-
High Reliability: Designed for long service life (40,000 hours at 60°C / 70,000 hours at 40°C), reducing maintenance costs.
-
Robust Design: Plastic frame and impeller designed to withstand rigorous industrial conditions.
-
Pulse Sensor Output: Allows for tachometer signal monitoring (rotation detection) to ensure system stability.
-
Eco-Friendly: Compliant with RoHS directives and various international safety standards (UL, CSA, EN).
Technical Specifications
|
Parameter
|
Specification
|
|
Model No.
|
9WPA1212G40011
|
|
Frame Size
|
120 x 120 x 25 mm
|
|
Rated Voltage
|
12 VDC
|
|
Operating Voltage
|
7.0 ~ 13.8 VDC
|
|
Rated Current
|
0.50 A
|
|
Rated Input Power
|
6.00 W
|
|
Rated Speed
|
4250 min?1 (RPM)
|
|
Max. Airflow
|
3.30 m3/min (117 CFM)
|
|
Max. Static Pressure
|
135 Pa (0.54 inchH?O)
|
|
Sound Pressure Level (SPL)
|
46 dB(A)
|
|
Expected Life
|
40,000 hrs (60°C) / 70,000 hrs (40°C)
|
|
Insulation Class
|
Class B (implied by temp range)
|
|
Material
|
Plastic (Frame & Impeller)
|
|
Protection Class
|
IP68
|
Applications
Due to its splash-proof and dust-proof capabilities, the 9WPA1212G40011 is ideal for:
-
Outdoor communication base stations
-
Vehicle-mounted electronics
-
Food and beverage processing machinery
-
Car washes and outdoor displays
-
Semiconductor manufacturing equipment
∷
