Product Overview

Key Specifications

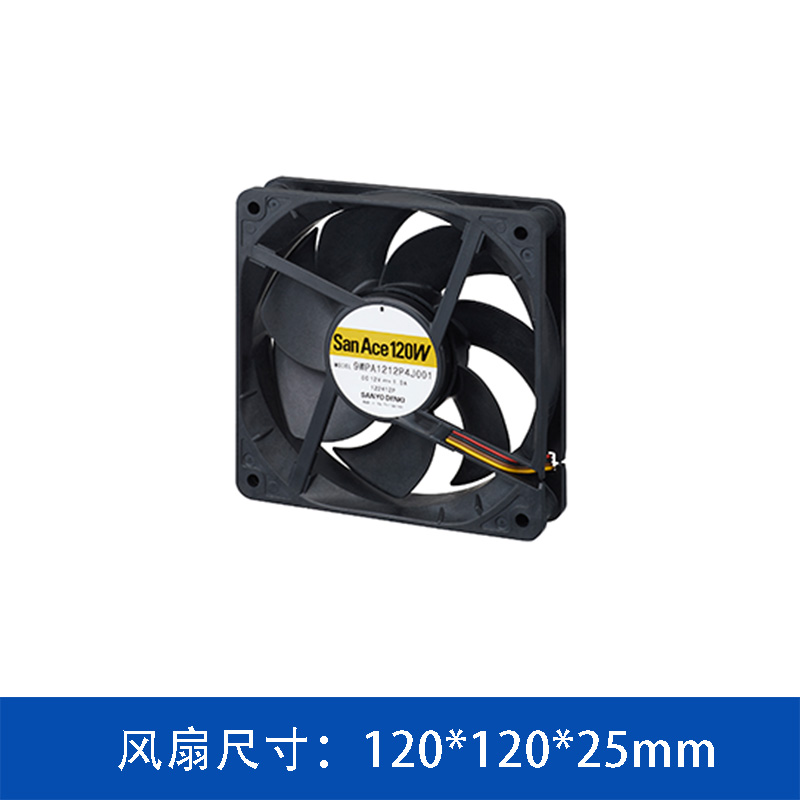

• Model Number: 9WPA1212G4001
• Frame Size: 120 x 120 x 25 mm
• Frame Material: Plastic (High-strength, corrosion-resistant)
• Rated Voltage: 12V DC
• Operating Voltage Range: 7V – 13.8V
• Rated Current: 0.50A
• Rated Input Power: 6.00W
• Rated Speed: 4250 min?1 (RPM)
• Max. Airflow: 117 CFM (3.30 m3/min)
• Max. Static Pressure: 0.54 inchH2O (135 Pa)
• Sound Pressure Level (SPL): 46 dB(A)
• Operating Temperature Range: -20°C to +70°C
• Expected Lifespan: 40,000 hours (at 60°C) / 70,000 hours (at 40°C)
• Mass: 240g
• IP Rating: IP68 (Dust tight and protected against continuous immersion in water)
• Ribbed Frame: Yes (Enhances structural rigidity)
• Sensor Type: Pulse Sensor (For speed monitoring)
• PWM Control Function: No

Features & Benefits

• IP68 Splash-Proof Design: Fully sealed construction protects against dust and water ingress, ensuring stable operation in wet or dirty environments.
• High Airflow & Static Pressure: Delivers 117 CFM of airflow and 0.54 inchH2O static pressure, providing efficient cooling for high-heat applications.
• Durable Plastic Frame: Lightweight yet robust, with ribbed reinforcement for added strength and vibration resistance.
• Wide Operating Temperature: Functions reliably from -20°C to +70°C, suitable for extreme environmental conditions.
• Long Service Life: Rated for up to 70,000 hours at 40°C, reducing maintenance frequency and total cost of ownership.
• Pulse Sensor Output: Enables real-time speed monitoring and fail-safe detection for system integration.
• Low Noise Operation: Optimized blade design achieves a balance between performance and acoustic comfort at 46 dB(A).

Typical Applications

• Industrial control cabinets and enclosures
• Outdoor telecommunications equipment
• Agricultural machinery and irrigation systems
• Food processing and packaging equipment
• Marine and automotive electronics
• HVAC systems and refrigeration units
• Any application requiring reliable cooling in wet, dusty, or corrosive environments

Compliance & Standards

• RoHS Directive: Compliant
• UL/cUL: Certified (File No. E415033)
• CE Marking: Compliant with EMC and LVD directives
• REACH: Compliant

Ordering Information

• Model: 9WPA1212G4001
• Package: Individual retail packaging or bulk options available
• Warranty: Standard 2-year manufacturer warranty
