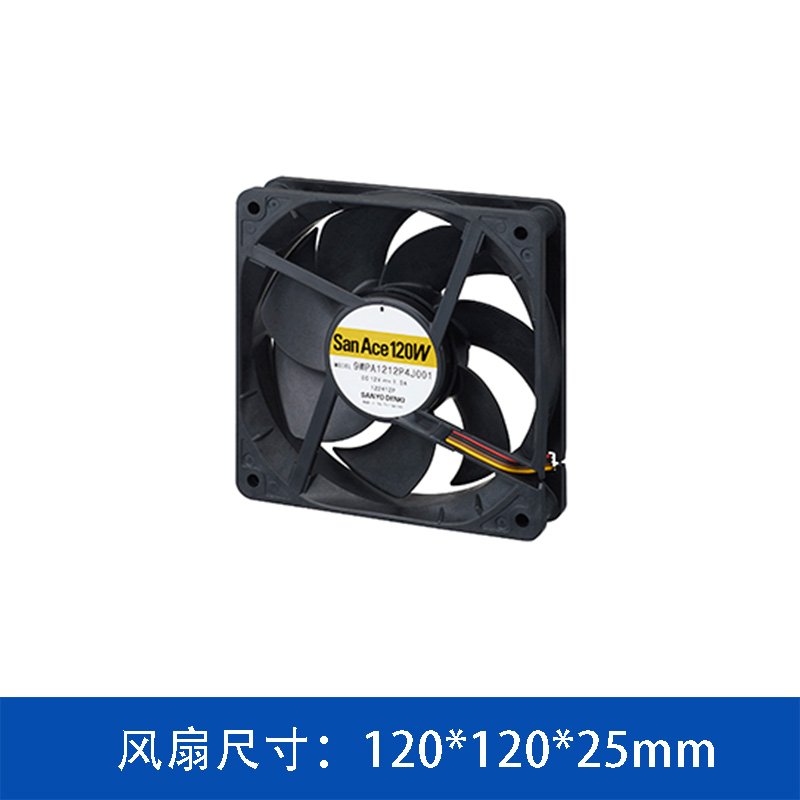

San Ace 120W Splash Proof Fan
Model No. 9WPA1212P4J0011
The San Ace 9WPA1212P4J0011 is a high-performance, splash-proof DC axial fan designed for reliable cooling in demanding environments. With an IP68 rating, this fan is fully protected against dust ingress and powerful water jets, making it ideal for outdoor equipment, washdown areas, and industrial machinery where moisture resistance is critical.
Built with high-quality plastic materials and featuring a compact 120mm frame size, this fan combines durability with efficient thermal management. It supports PWM (Pulse Width Modulation) control, allowing for precise speed adjustment based on system temperature requirements, which helps optimize energy consumption and noise levels.
Key Features
-
IP68 Splash Proof Protection: Guaranteed protection against dust and immersion in water, ensuring stable operation even in wet or humid conditions.
-
PWM Control Function: Enables dynamic speed control via a 4-wire interface for intelligent thermal management.
-
High Reliability: Expected life of up to 40,000 hours at 60°C (and 70,000 hours at 40°C), ensuring long-term maintenance-free operation.
-
Pulse Sensor Output: Provides tachometer signals (FG output) to monitor fan speed and detect rotation status.
-
Robust Design: Ribbed frame construction (No ribs on the frame) ensures structural integrity while maintaining a lightweight profile (240g).
Specifications
|
Parameter
|
Specification
|
|
Model No.
|
9WPA1212P4J0011
|
|
Frame Size
|
120 x 120 x 25 mm
|
|
Rated Voltage
|
12 VDC
|
|
Operating Voltage Range
|
10.8 to 13.2 VDC
|
|
Rated Current
|
1.0 A
|
|
Rated Input Power
|
12.0 W
|
|
Rated Speed
|
5400 min?1 (RPM)
|
|
Max. Airflow
|
4.20 m3/min (148 CFM)
|
|
Max. Static Pressure
|
210 Pa (0.84 inchH?O)
|
|
Acoustic Noise (SPL)
|
53 dB(A)
|
|
IP Rating
|
IP68
|
|
Operating Temperature
|
-20 to +60 °C
|
|
Expected Life
|
40,000 hours (at 60°C) / 70,000 hours (at 40°C)
|
|
Features
|
PWM Control, Pulse Sensor
|
Applications
This fan is specifically engineered for applications requiring superior environmental resistance:
-
Outdoor Telecommunications Equipment: Base stations and communication cabinets exposed to rain and dust.
-
Food and Beverage Processing: Machinery requiring frequent washdowns and high hygiene standards.
-
Industrial Automation: Control panels and robotics operating in humid or dirty factory floors.
-
HVAC Systems: Ventilation units requiring robust moisture protection.
-
Automotive Testing: Environmental chambers and testing equipment.
Performance Curve
(Note: The actual webpage would display the Airflow vs. Static Pressure graph here, showing the intersection of airflow and resistance.)
∷
