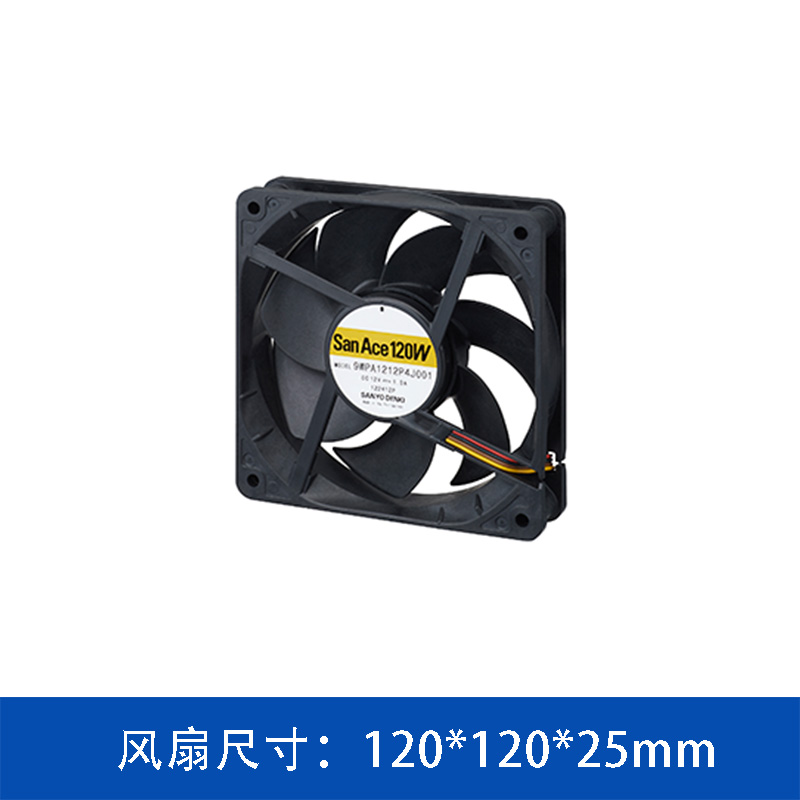

12025 12V Splash Proof Fan

9WPA1212P4J001

Brand: SanAce (Japan sanyodenki)
Size: 120x120x25mm
Characteristics: IP68 Splash Proof Fan
Signal line: 3-wire
Product description: The SANYO DENKI San Ace 9WPA1212P4J001 is a 120x120x25mm DC axial cooling fan with IP68 splash-proof rating, featuring PWM speed control, 12V rated voltage, and 4.20m3/min maximum airflow. Ideal for i
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承認書/規格書	型號	額定定壓	電壓范圍	額定電流	額定功率	轉速	最大風量		最大風壓			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	?/min	CFM	Pa	mmH2O	INH2O	DB-A
暫無數據

PRODUCT PRESENTATION

Product Overview

The SANYO DENKI San Ace 9WPA1212P4J001 is a high-performance DC axial cooling fan designed for demanding environments. With its robust IP68 splash-proof rating and PWM control functionality, this fan delivers reliable cooling for industrial, outdoor, and harsh-condition applications. Its compact 120x120x25mm form factor and durable plastic frame make it a versatile solution for thermal management.

Key Features

IP68 Splash-Proof Protection: Fully sealed against dust and water immersion, ensuring operation in wet or dusty environments.
PWM Speed Control: Enables precise speed adjustment via pulse-width modulation, optimizing cooling efficiency and noise levels.
High Airflow & Static Pressure: Delivers 4.20m3/min (148 CFM) maximum airflow and 210 Pa static pressure for effective heat dissipation.
Wide Operating Temperature Range: Functions reliably from -20°C to +60°C, suitable for extreme climates.
Long Service Life: Expected lifespan of 40,000 hours at 60°C (70,000 hours at 40°C), reducing maintenance needs.
Pulse Sensor: Integrated sensor for real-time speed monitoring and feedback.

Technical Specifications

表格

Parameter	Value
Model No.	9WPA1212P4J001
Frame Size	120 x 120 x 25 mm
Frame Material	Plastic
Rated Voltage	12 V DC
Operating Voltage Range	10.8 ~ 13.2 V
Rated Current	1.0 A
Rated Input Power	12.0 W
Rated Speed	5400 min?1
Max. Airflow	4.20 m3/min (148 CFM)
Max. Static Pressure	210 Pa (0.84 inchH?O)
Noise Level (SPL)	53 dB(A)
Operating Temperature	-20 ~ +60 °C
Expected Life	40,000h (60°C) / 70,000h (40°C)
IP Rating	IP68
Control Function	PWM (Pulse Width Modulation)
Sensor Type	Pulse Sensor
Mass	240 g
Ribbed Frame	Yes

Applications

Industrial Equipment: Cooling for motor drives, power supplies, and control panels in factories.
Outdoor Enclosures: Protecting electronics in telecom cabinets, traffic systems, and renewable energy installations.
Harsh Environments: Suitable for food processing, marine, and agricultural machinery where moisture and dust are prevalent.
High-Reliability Systems: Ideal for medical devices, servers, and automation equipment requiring stable thermal management.

Compliance & Certifications

Eco Products: Designed with environmental sustainability in mind.
UL Ratings: Meets Underwriters Laboratories safety standards.
CSA Standards: Compliant with Canadian Standards Association requirements.
EN Standards: Adheres to European Norms for electrical equipment.
RoHS Directive: Free from hazardous substances as per EU regulations.

Why Choose San Ace?
