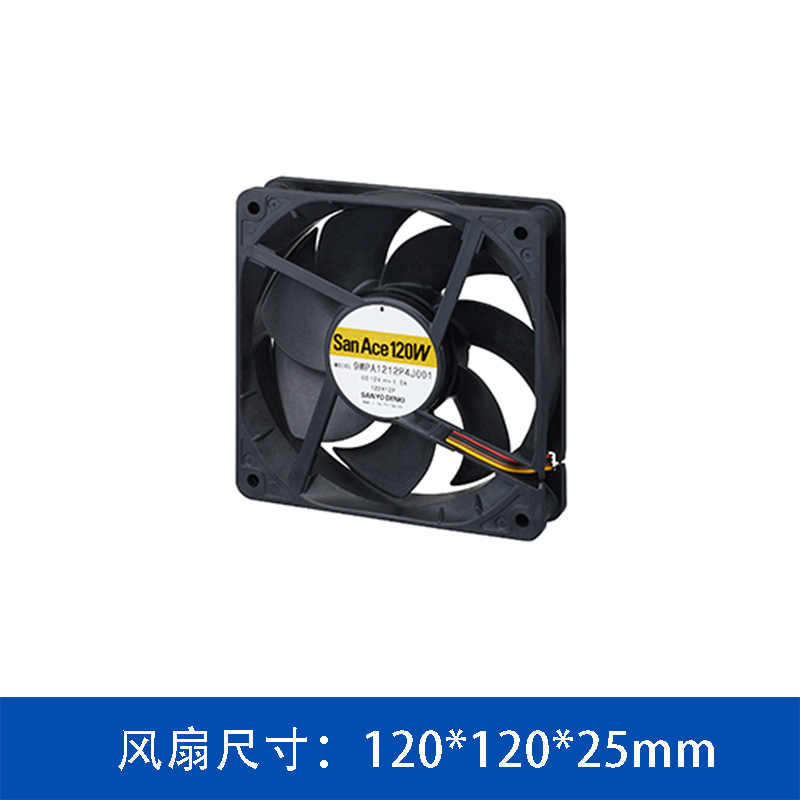

12025 24V Splash Proof Fan

9WPA1224H40011

Brand: SanAce (Japan sanyodenki)
Size: 120x120x25mm
Characteristics: IP68 Splash Proof Fan
Signal line: 3-wire
Product description: SANYO DENKI San Ace 120x120x25mm DC splash-proof fan with IP68 rating, 24V/0.06A, 65CFM max airflow. Ideal for industrial equipment, outdoor cabinet cooling, operating from -20 to +70°C.
INQUIRY
暫無規格書

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承認書/規格書	型號	額定定壓	電壓范圍	額定電流	額定功率	轉速	最大風量		最大風壓			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	?/min	CFM	Pa	mmH2O	INH2O	DB-A
暫無數據

PRODUCT PRESENTATION

Product Overview

The SANYO DENKI San Ace 120 Splash-Proof Fan (Model: 9WPA1224H40011) is a high-reliability DC axial fan designed for harsh environments. With an IP68 ingress protection rating, it resists dust and water immersion, making it suitable for industrial, outdoor, and moisture-prone applications. The 120x120x25mm plastic frame combines lightweight durability with efficient heat dissipation.

Key Features

IP68 Waterproof & Dustproof: Ensures stable operation in wet or dusty conditions.
Wide Operating Temperature: Functions reliably from -20°C to +70°C.
High Airflow & Static Pressure: Delivers 65.0 CFM (1.85 m3/min) max airflow and 47.0 Pa (0.19 inchH?O) max static pressure.
Long Service Life: Expected lifespan of 40,000 hours at 60°C (70,000 hours at 40°C).
Pulse Sensor: Enables speed monitoring for system diagnostics.

Technical Specifications

表格

Parameter	Specification	Parameter	Specification
Model No.	9WPA1224H40011	Frame Size (mm)	120
Frame Thickness (mm)	25	Frame Material	Plastic
Rated Voltage (V)	24	Operating Voltage Range (V)	20.4–27.6
Rated Current (A)	0.06	Rated Input (W)	1.44
Rated Speed (min?1)	2400	Max. Airflow (m3/min)	1.85
Max. Airflow (CFM)	65.0	Max. Static Pressure (Pa)	47.0
Max. Static Pressure (inchH?O)	0.19	SPL (dB(A))	30
Operating Temperature (°C)	-20~+70	Expected Life (h)	40000/60°C (70000/40°C)
Mass (g)	240	Sensor Type	Pulse sensor
IP Rating	IP68	PWM Control Function	No
Ribbed	No

Application Scenarios

Industrial Equipment: Cooling for PLCs, motor drives, and control panels in factories.
Outdoor Cabinets: Protecting telecommunications, power, or IoT devices from rain and dust.
Marine & Agriculture: Ventilation for equipment exposed to moisture, salt spray, or debris.
LED Lighting & Signage: Heat management for outdoor displays and high-bay lights.

Compliance & Standards

Eco-Friendly: Complies with RoHS directive.
Safety Certifications: UL, CSA, and EN standards for global market acceptance.

Why Choose This Fan?
