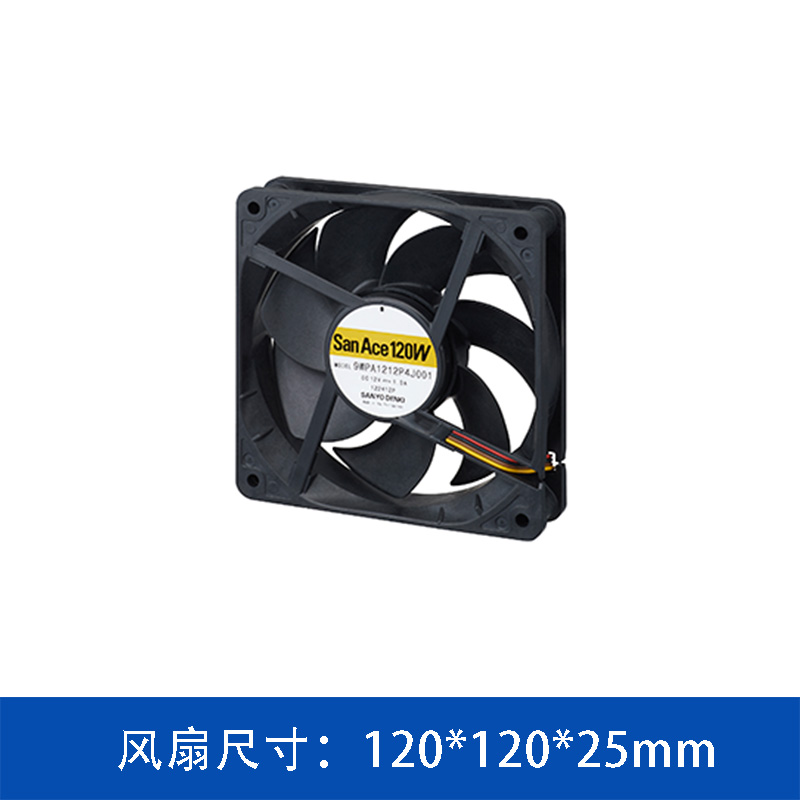

12025 24V Splash Proof Fan

9WPA1224J4001

Brand: SanAce (Japan sanyodenki)
Size: 120x120x25mm
Characteristics: IP68 Splash Proof Fan
Signal line: 3-wire
Product description: The SANYO DENKI San Ace 9WPA1224J4001 is a 120x120x25mm, 24V DC cooling fan with IP68 ingress protection. Featuring a max airflow of 148 CFM and 0.50A rated current, it is designed for reliable coolin
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承認書/規格書	型號	額定定壓	電壓范圍	額定電流	額定功率	轉速	最大風量		最大風壓			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	?/min	CFM	Pa	mmH2O	INH2O	DB-A
暫無數據

PRODUCT PRESENTATION

Product Overview: San Ace Splash Proof Fan 9WPA1224J4001

The SANYO DENKI San Ace 9WPA1224J4001 is a high-performance, splash-proof DC axial fan designed for demanding cooling applications. With its IP68 rating, this fan offers superior protection against dust and water immersion, making it ideal for outdoor equipment and washdown environments. The 120mm frame size combined with a 24V DC input ensures versatile integration into various industrial systems requiring reliable thermal management.

Key Features

IP68 Ingress Protection: Fully dust-tight and protected against continuous immersion in water.
Splash Proof Design: Specifically engineered to withstand harsh, wet conditions without compromising performance.
High Airflow: Delivers a maximum airflow of 4.20 m3/min (148 CFM) to efficiently dissipate heat.
High Static Pressure: Capable of generating up to 210 Pa (0.84 inchH2O), suitable for systems with high airflow resistance.
Pulse Sensor: Equipped with a pulse sensor output to monitor fan rotation speed and detect lock conditions.
Durable Construction: Features a plastic frame and ribbed design for enhanced structural integrity.

Technical Specifications

表格

Parameter	Specification
Model No.	9WPA1224J4001
Frame Size	120 x 120 x 25 mm
Rated Voltage	24 VDC
Operating Voltage Range	14 ~ 26.4 VDC
Rated Current	0.50 A
Rated Input Power	12.0 W
Rated Speed	5400 min?1 (RPM)
Max. Airflow	4.20 m3/min (148 CFM)
Max. Static Pressure	210 Pa (0.84 inchH2O)
Sound Pressure Level (SPL)	53 dB(A)
IP Rating	IP68
Operating Temperature	-20 to +60°C
Expected Life	40,000 hours (at 60°C) / 70,000 hours (at 40°C)
Sensor Type	Pulse Sensor (1 pulse/rotation)
PWM Control	No
Material	Plastic (Frame & Impeller)

Performance Data

Airflow vs. Static Pressure: Optimized curve for high-resistance environments.
Noise Level: 53 dB(A) at rated voltage, balancing cooling power with acoustic comfort.

Typical Applications

The San Ace 9WPA1224J4001 is widely used in applications where moisture and dust are significant concerns:

Outdoor Telecommunication Cabinets: Protecting sensitive electronics from rain and dust.
Food and Beverage Processing: Withstanding washdowns and high-humidity environments.
Industrial Control Panels: Ensuring reliable cooling in factory floors with coolant mist.
Automotive Testing Equipment: Used in environments requiring robust cooling solutions.
LED Lighting Systems: Cooling high-power outdoor lighting fixtures.

Certifications & Compliance

UL / cUL: Recognized component for safety standards.
CE (EN Standards): Compliant with European directives.
RoHS Directive: Environmentally friendly materials used.
CSA Standards: Certified for Canadian safety requirements.
