How to Select Waterproof Cooling Fans for PV Inverters? Key Selection Guide for San Ace 9WPA IP68 DC Axial Fans

In photovoltaic (PV) inverter systems, thermal management plays a decisive role in overall system stability and lifespan. Especially in outdoor installations, harsh environmental factors such as high temperature, humidity, dust, and rain impose stringent requirements on cooling components.

For engineers and technical decision-makers, selecting the right waterproof cooling fan is not just about airflow performance, but also about long-term reliability, protection level, and system compatibility. This article provides a practical selection guide based on the San Ace 9WPA 120 × 120 × 25 mm IP68 DC axial fan series from SANYO DENKI.

---

1. Environmental Challenges in PV Inverter Cooling

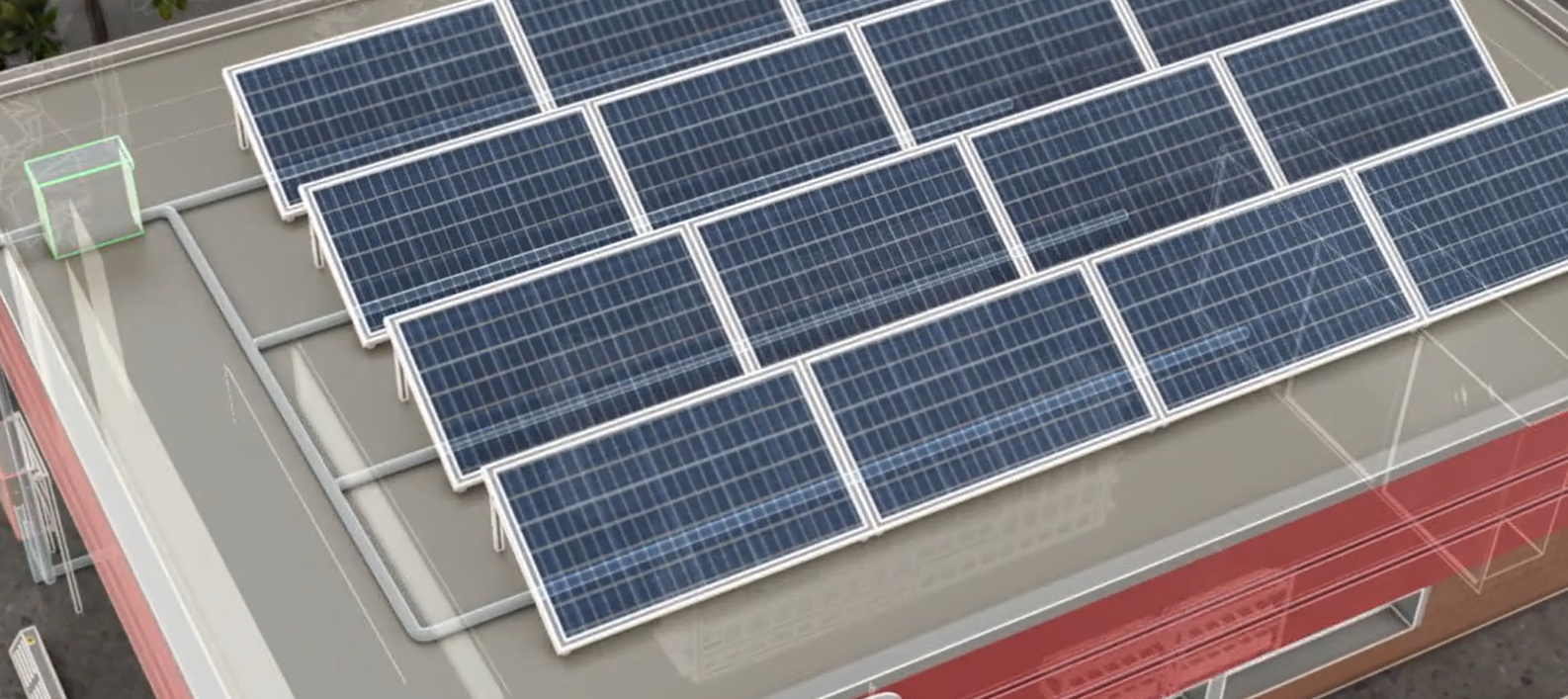

PV inverters are typically installed outdoors or in semi-exposed environments, facing:

• High ambient temperatures due to solar radiation
• Moisture and condensation risks
• Dust accumulation affecting airflow
• Continuous 24/7 operation throughout the year

These conditions require cooling fans with both strong airflow performance and high ingress protection.

---

---

2. Why IP68 Protection Is Essential

Ingress Protection (IP) ratings are defined by IEC 60529:

• IP54: Limited dust protection + splash resistance
• IP55: Limited dust protection + water jets resistance
• IP68: ????? dust protection + water immersion resistance

For PV inverter applications, IP68 offers critical advantages:

• Complete dust isolation to protect internal components
• Resistance to water immersion under extreme weather
• Enhanced long-term operational reliability

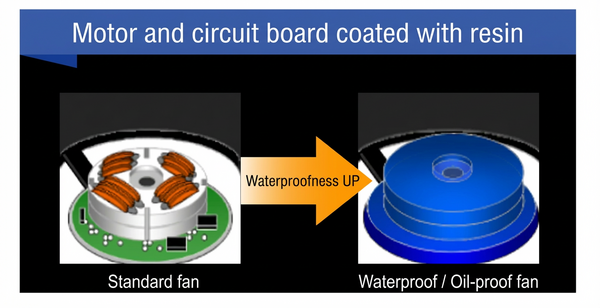

San Ace Splash Proof Fans are designed for such environments. They can withstand submersion equivalent to 2 meters of water for 60 minutes (power off), and then operate normally without degradation.

---

3. Key Specifications of San Ace 9WPA 120 mm Series

Below are representative models and their core specifications:

Key observations:

• Power range from 1.44W to 12W for different thermal loads
• Maximum airflow up to 148 CFM for high-power systems
• Static pressure up to 210 Pa for restrictive airflow paths
• PWM models enable intelligent speed control

---

4. Key Selection Criteria

4.1 Determine Airflow Based on Thermal Load

Key heat sources in PV inverters include IGBTs, MOSFETs, and magnetic components.

Selection steps:

• Calculate total heat dissipation (W)
• Define allowable temperature rise
• Estimate required airflow (CFM)

For medium to high-power inverters, models above 100 CFM are recommended.

---

4.2 Consider Static Pressure for System Resistance

In real applications:

• Filters, heat sinks, and ducts increase airflow resistance
• Actual airflow is lower than free-air specifications

Therefore, high static pressure models (up to 210 Pa) are recommended for stable cooling performance.

---

4.3 Match System Voltage

The 9WPA series supports:

• 12V models for compact systems
• 24V models for industrial-grade applications

Ensure compatibility with system power architecture to avoid inefficiencies.

---

4.4 Evaluate PWM Control Requirements

For smart inverter systems, PWM-enabled models are preferred:

• Dynamic speed control based on temperature
• Reduced power consumption and noise
• Extended fan lifespan

Recommended PWM models:

• 9WPA1212P4G001
• 9WPA1212P4J001

---

4.5 Reliability and Lifetime Considerations

San Ace waterproof fans offer:

• Up to 180,000 hours long life (under specific conditions)
• Standard 40,000 hours at 60°C
• Pulse sensor for speed monitoring
• Optional locked rotor detection

For mission-critical applications like PV inverters, high-reliability components significantly reduce maintenance costs.

---

5. Typical Selection Recommendations

---

6. Why Engineers Prefer San Ace Original Fans

In engineering practice, fan selection goes beyond specifications:

• High consistency across production batches
• Proven technology in industrial and power electronics applications
• International certifications (UL, CE)
• Extensive field validation in PV and energy systems

San Ace 9WPA series is widely recognized for its reliability in harsh outdoor environments.

---

Cooling fan selection for PV inverters is a critical engineering decision that directly impacts system reliability and operational lifespan. Engineers should evaluate environmental conditions, airflow, static pressure, voltage compatibility, and control features comprehensively.

San Ace 9WPA IP68 DC axial fans provide a robust and proven solution for outdoor inverter cooling, combining high protection, strong performance, and long-term stability.

jamicon cooling fan，AVC cooling fan，jentech cooling fan，AVC fan

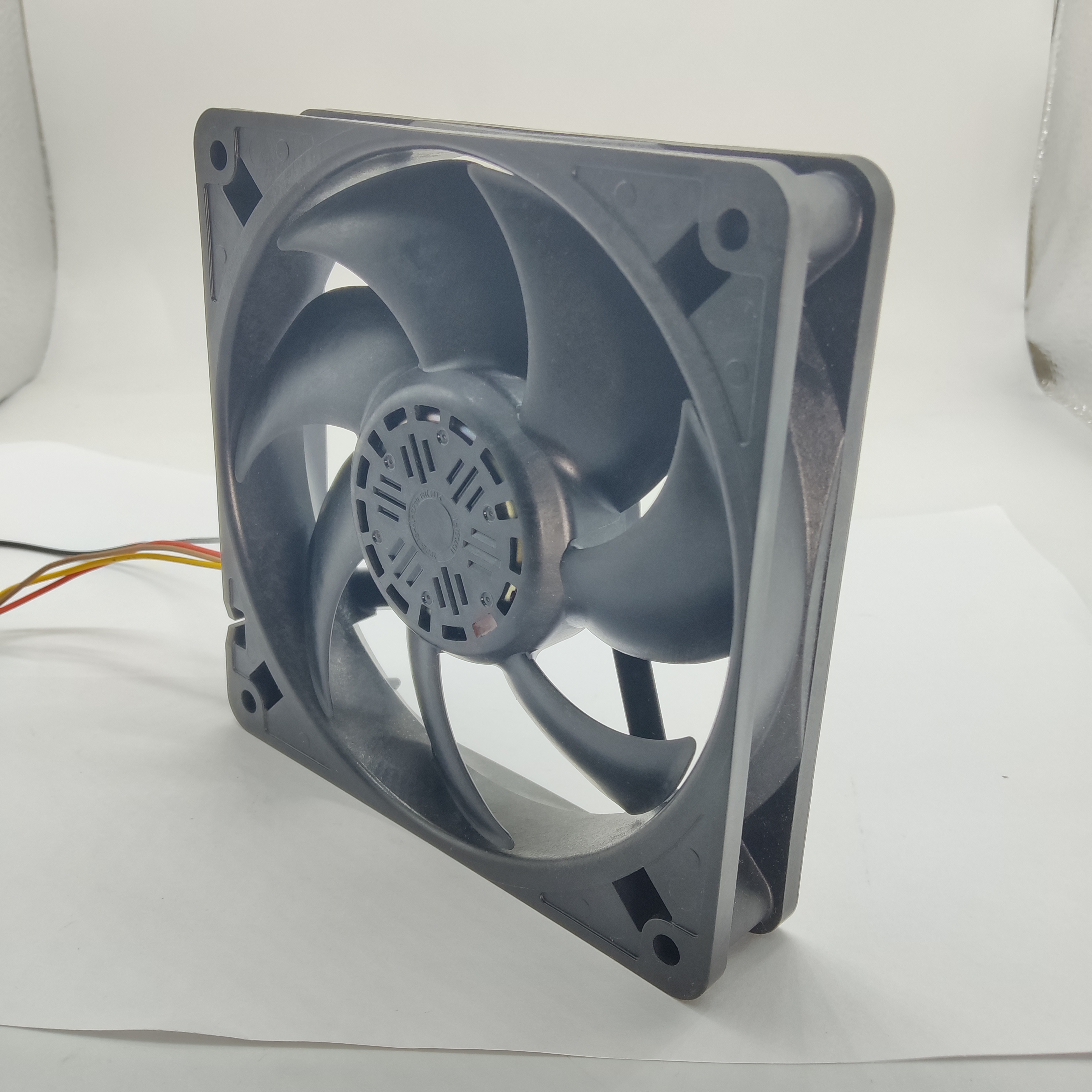

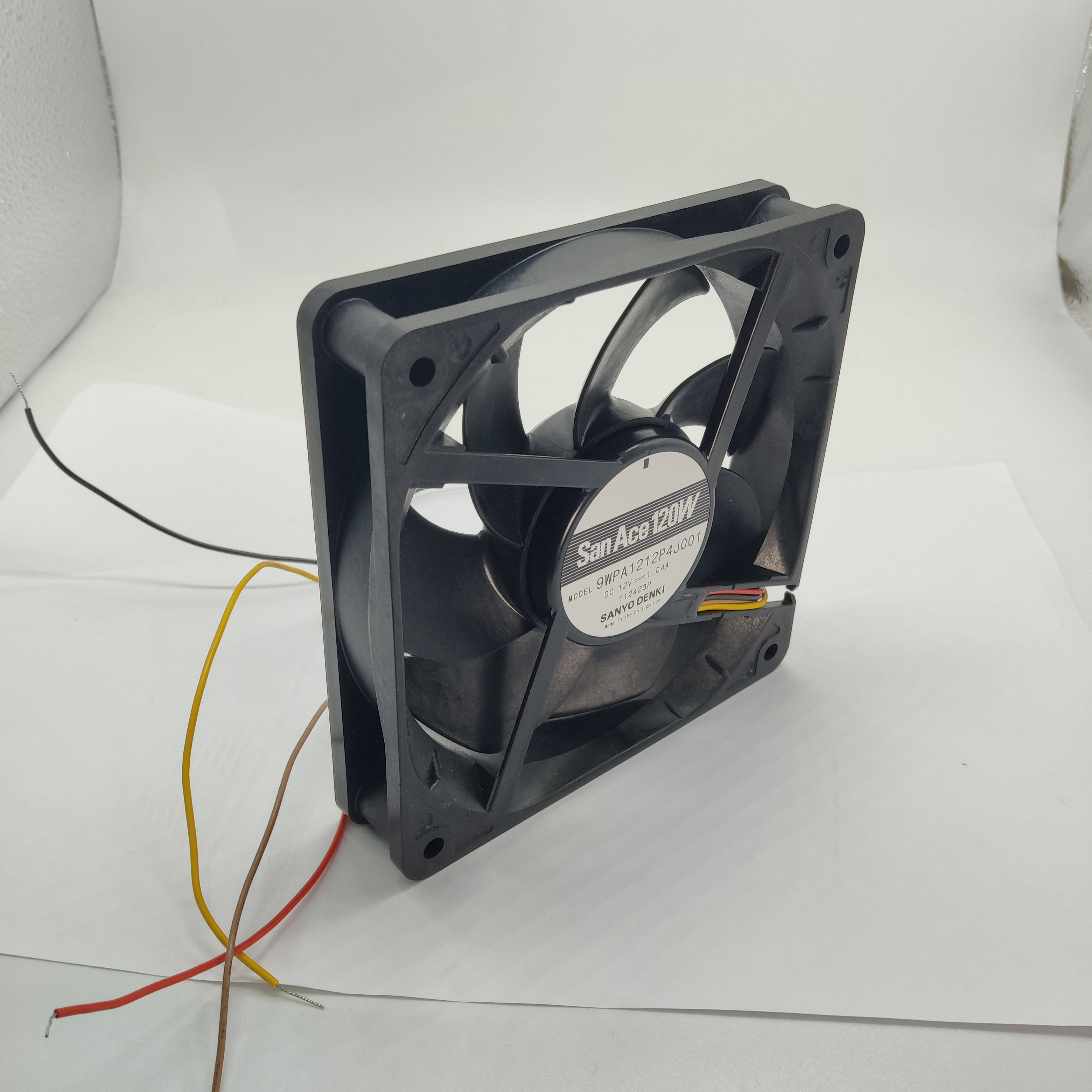

SANYO DENKI San Ace 120x120x25mm Splash Proof Fan

型號	產品 名稱	額定 電壓 (V)	額定 電流 (A)	額定 功率 (W)	額定 轉速 (min-1)	最大 氣流 (CFM)	最大 靜壓 (Pa)	噪音 (dBA)	預期 壽命 (h)	IP防護 等級	PWM控制功能
9WPA1212G4001	Splash Proof Fan	12	0.5	6	4250	117	135	46	40000/60℃ (70000/40℃)	IP68	No
9WPA1212G40011	Splash Proof Fan	12	0.5	6	4250	117	135	46	40000/60℃ (70000/40℃)	IP68	No
9WPA1212H4001	Splash Proof Fan	12	0.12	1.44	2400	65	47	30	40000/60℃ (70000/40℃)	IP68	No
9WPA1212H40011	Splash Proof Fan	12	0.12	1.44	2400	65	47	30	40000/60℃ (70000/40℃)	IP68	No
9WPA1212J4001	Splash Proof Fan	12	1	12	5400	148	210	53	40000/60℃ (70000/40℃)	IP68	No
9WPA1212J40011	Splash Proof Fan	12	1	12	5400	148	210	53	40000/60℃ (70000/40℃)	IP68	No
9WPA1212P4G001	Splash Proof Fan	12	0.5	6	4250	117	135	46	40000/60℃ (70000/40℃)	IP68	Yes
9WPA1212P4G0011	Splash Proof Fan	12	0.5	6	4250	117	135	46	40000/60℃ (70000/40℃)	IP68	Yes
9WPA1212P4J001	Splash Proof Fan	12	1	12	5400	148	210	53	40000/60℃ (70000/40℃)	IP68	Yes
9WPA1212P4J0011	Splash Proof Fan	12	1	12	5400	148	210	53	40000/60℃ (70000/40℃)	IP68	Yes
9WPA1224G4001	Splash Proof Fan	24	0.25	6	4250	117	135	46	40000/60℃ (70000/40℃)	IP68	No
9WPA1224G40011	Splash Proof Fan	24	0.25	6	4250	117	135	46	40000/60℃ (70000/40℃)	IP68	No
9WPA1224H4001	Splash Proof Fan	24	0.06	1.44	2400	65	47	30	40000/60℃ (70000/40℃)	IP68	No
9WPA1224H40011	Splash Proof Fan	24	0.06	1.44	2400	65	47	30	40000/60℃ (70000/40℃)	IP68	No
9WPA1224J4001	Splash Proof Fan	24	0.5	12	5400	148	210	53	40000/60℃ (70000/40℃)	IP68	No
9WPA1224J40011	Splash Proof Fan	24	0.5	12	5400	148	210	53	40000/60℃ (70000/40℃)	IP68	No
9WPA1224P4G001	Splash Proof Fan	24	0.25	6	4250	117	135	46	40000/60℃ (70000/40℃)	IP68	Yes
9WPA1224P4G0011	Splash Proof Fan	24	0.25	6	4250	117	135	46	40000/60℃ (70000/40℃)	IP68	Yes
9WPA1224P4J001	Splash Proof Fan	24	0.5	12	5400	148	210	53	40000/60℃ (70000/40℃)	IP68	Yes
9WPA1224P4J0011	Splash Proof Fan	24	0.5	12	5400	148	210	53	40000/60℃ (70000/40℃)	IP68	Yes
