3628 DC12V COOLING FAN

9GV3612P3J03

Brand: SanAce (Japan sanyodenki)
Size: 36x36x28mm
Characteristics: High rotational speed, high static pressure, high air volume
Signal line: 4-wire PWM + FG
Product description: The Sanyo Denki 9GV3612P3J03 is a 36x36x28mm 12V DC axial cooling fan designed for low power consumption and high static pressure. With a rated speed of 19,000 RPM, it delivers a max airflow of 0.55 m
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承認書/規格書	型號	額定定壓	電壓范圍	額定電流	額定功率	轉速	最大風量		最大風壓			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	?/min	CFM	Pa	mmH2O	INH2O	DB-A
	9GV3612P3J03	12	10.8~13.2	0.75	9	19000	0.55	19.4	525		2.108	58.5

PRODUCT PRESENTATION

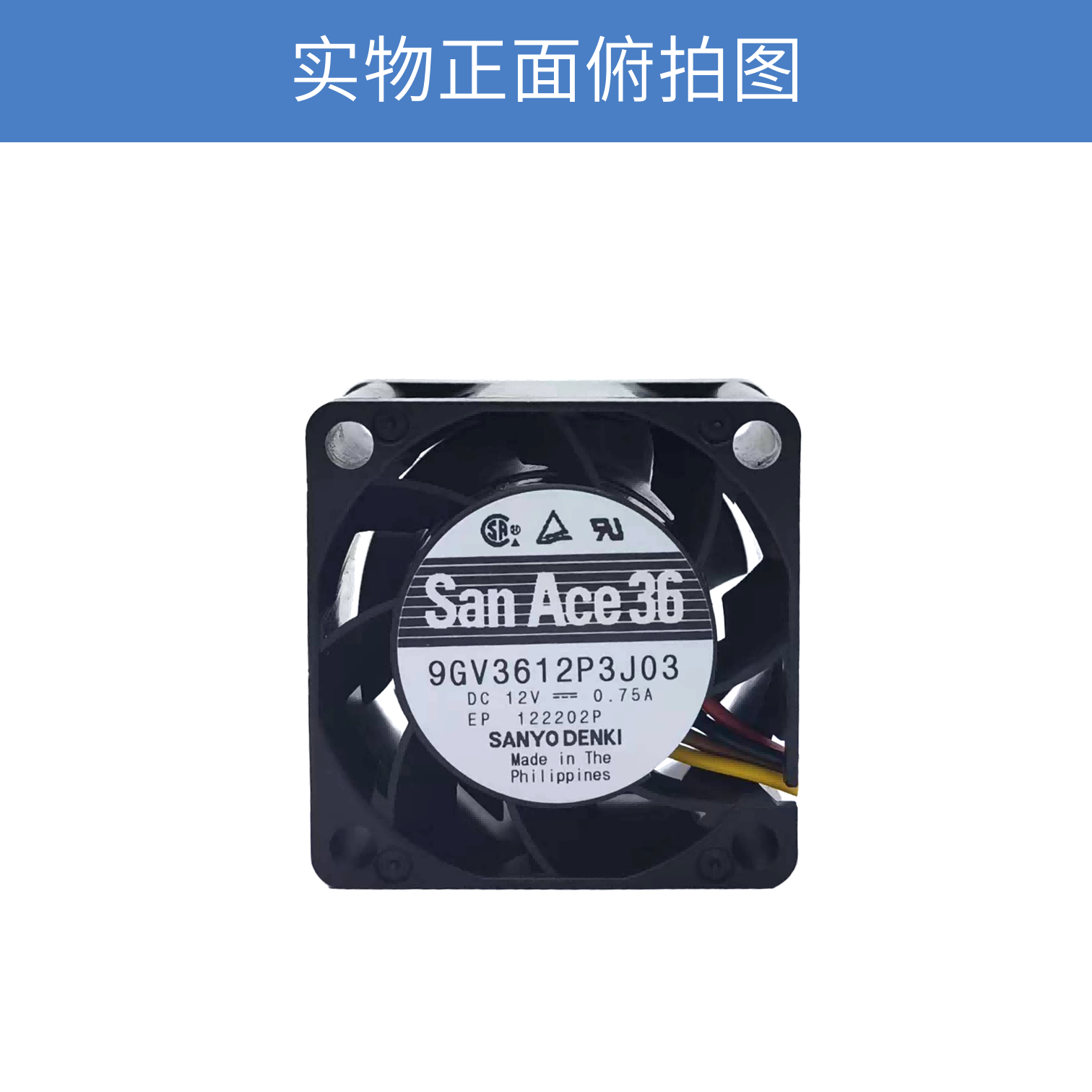

San Ace 36 DC Cooling Fan 9GV3612P3J03 Product Details

Product Overview

The San Ace 36 DC Cooling Fan 9GV3612P3J03 is a high-performance axial cooling fan designed for efficient thermal management in various electronic and industrial applications. Manufactured by Sanyo Denki, this fan combines reliability with advanced features such as PWM control and a pulse sensor for precise speed monitoring. With a compact frame size of 36mm x 36mm x 28mm, it is ideal for space-constrained environments where effective cooling is essential.

Key Features

Compact Design: Small footprint suitable for tight spaces.
PWM Control: Allows for precise speed control and energy efficiency.
Pulse Sensor: Enables real-time monitoring of fan speed.
High Performance: Delivers maximum airflow of 0.55 m3/min and static pressure of 525 Pa.
Durability: Designed for long life with an expected lifespan of 40,000 hours at 60°C.
Wide Operating Temperature Range: Functions effectively in temperatures ranging from -10°C to +60°C.

Specifications

Parameter	Value
Model No.	9GV3612P3J03
Frame Size [mm]	36
Frame Thickness [mm]	28
Frame Material	Plastic
Rated Voltage [V]	12
Operating Voltage Range [V]	10.8~13.2
Rated Current [A]	0.75
Rated Input [W]	9
Rated Speed [min?1]	19000
Max. Airflow [m3/min]	0.55
Max. Airflow [CFM]	19.4
Max. Static Pressure [Pa]	525
Max. Static Pressure [inchH?O]	2.108
SPL [dB(A)]	58.5
Operating Temperature [°C]	-10~+60
Expected Life [h]	40000/60°C (70000/40°C)
Mass [g]	46
Sensor Type	Pulse sensor
PWM Control Function	Yes
Ribbed	Yes

Applications

Application Area	Specific Use Cases
Consumer Electronics	Cooling for high-performance gaming consoles, set-top boxes, and media streamers.
Networking Equipment	Thermal management in routers, switches, and modems to ensure stable connectivity.
Industrial Automation	Cooling for PLCs, control panels, and robotic systems in harsh environments.
Medical Devices	Reliable cooling for diagnostic equipment, patient monitors, and imaging systems.
Telecommunications	Heat dissipation in base stations, signal amplifiers, and data transmission units.
Power Supplies	Maintaining optimal temperatures in AC-DC and DC-DC power conversion units.

Certifications

Eco Products: Environmentally friendly design.
UL Ratings: Meets Underwriters Laboratories safety standards.
CSA Standards: Complies with Canadian Standards Association requirements.
EN Standards: Adheres to European Norms for safety and performance.
RoHS Directive: Compliant with Restriction of Hazardous Substances regulations.

Download Materials List

Datasheets: Comprehensive technical specifications and performance curves.
Application Models: CAD models for integration into system designs.

Related Information: Application notes and technical bulletins for optimal usage.

This detailed product description ensures that potential customers have all the necessary information to make an informed decision regarding the San Ace 36 DC Cooling Fan 9GV3612P3J03.
