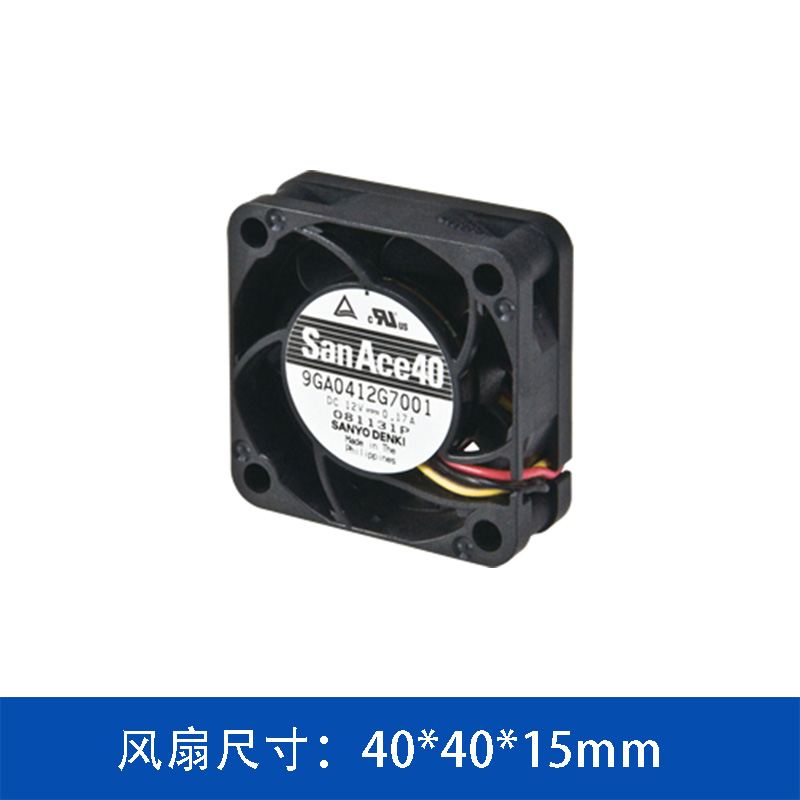

4015 12V Low Power Consumption Fan

9GA0412H7001

Brand: SanAce (Japan sanyodenki)
Size:40x40x15mm
Characteristics: Low power consumption, low noise, long lifespan
Signal line: 3-wire FG
Product description: SANYO DENKI San Ace 40 low power consumption fan model 9GA0412H7001, size 40x40x15mm, 12V rated voltage. Max airflow 0.2m3/min, low noise 28dB(A), ideal for cooling telecom equipment, industrial contr
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承認書/規格書	型號	額定定壓	電壓范圍	額定電流	額定功率	轉速	最大風量		最大風壓			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	?/min	CFM	Pa	mmH2O	INH2O	DB-A
	9GA0412H7001	12	7~-13.8	0.06	0.72	7300	0.2	7.1	59.6	6.096	0.24	28

PRODUCT PRESENTATION

Product Overview

The San Ace 40 Low Power Consumption Fan (Model: 9GA0412H7001) is a compact, energy-efficient DC axial flow fan designed for applications requiring reliable cooling with minimal power usage. With its 40x40x15mm form factor and plastic frame, it delivers a maximum airflow of 0.2m3/min while operating at a quiet 28dB(A). This fan is engineered for long-term reliability, with an expected life of 40,000 hours at 60°C, making it suitable for a wide range of industrial and commercial cooling needs.

Key Features

Low Power Consumption: Rated input of only 0.72W, ideal for energy-sensitive applications.
Quiet Operation: Sound pressure level of 28dB(A) ensures minimal noise disruption.
Compact Design: 40x40x15mm size fits into space-constrained environments.
Wide Operating Voltage: Functions reliably within 7-13.8V range.
Long Lifespan: Expected life of 40,000 hours at 60°C (70,000 hours at 40°C).
Pulse Sensor: Equipped with a pulse sensor for speed monitoring.

Technical Specifications

Specification	Value	Specification	Value
Model No.	9GA0412H7001	Frame size [mm]	40
Frame thickness [mm]	15	Frame material	Plastic
Rated voltage [V]	12	Operating voltage range [V]	7~13.8
Rated current [A]	0.06	Rated input [W]	0.72
Rated speed [min?1]	7300	Max. airflow [m3/min]	0.2
Max. airflow [CFM]	7.1	Max. static pressure [Pa]	59.6
Max. static pressure [inchH2O]	0.24	SPL [dB(A)]	28
Operating temperature [°C]	-20~+70	Expected life [h]	40000/60°C (70000/40°C)
Mass [g]	28	Sensor type	Pulse sensor
PWM control function	No	Ribbed	Yes

Applications

The San Ace 40 9GA0412H7001 is versatile and can be used in various cooling scenarios:

Application Area	Specific Use Cases
Telecommunications	Cooling for base stations, routers, and network switches.
Industrial Equipment	Ventilation for control panels, PLCs, and small machinery.
Office Electronics	Cooling for printers, projectors, and small form-factor PCs.
Consumer Electronics	Heat dissipation for gaming consoles, set-top boxes, and audio equipment.
Medical Devices	Cooling for diagnostic equipment and patient monitoring systems.

Certifications & Compliance

This product complies with multiple international standards, ensuring safety and environmental friendliness:

UL ratings
CSA standards
EN standards
RoHS directive
Eco Products
Low Power Consumption
