4015 24V DC COOLING FAN

109P0424H701

Brand: SanAce (Japan sanyodenki)
Size: 40*40*15mm
Characteristics: High rotational speed, high static pressure, high air volume
Signal line: 4-wire PWM + FG
Product description: SANYO DENKI San Ace 40x40x15mm axial cooling fan (Model 109P0424H701) features 24V rated voltage, 0.18m3/min max airflow, and 28dB(A) noise level. Ideal for server, telecom, and precision electronics
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承認書/規格書	型號	額定定壓	電壓范圍	額定電流	額定功率	轉速	最大風量		最大風壓			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	?/min	CFM	Pa	mmH2O	INH2O	DB-A
	109P0424H701	24	20.4~27.6	0.08	1.92	7700	0.18	6.4	75.5	7.6962	0.303	28

PRODUCT PRESENTATION

Product Overview

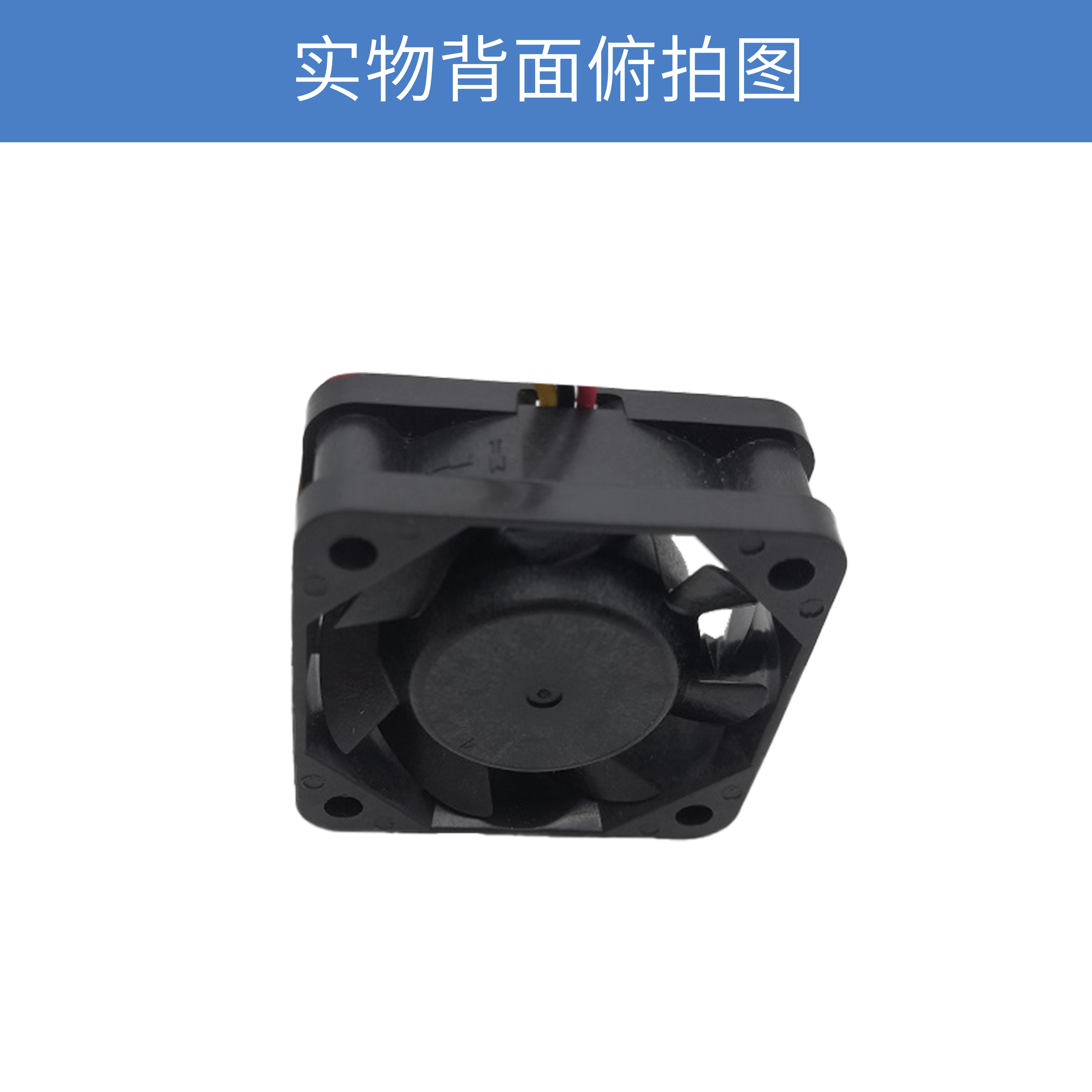

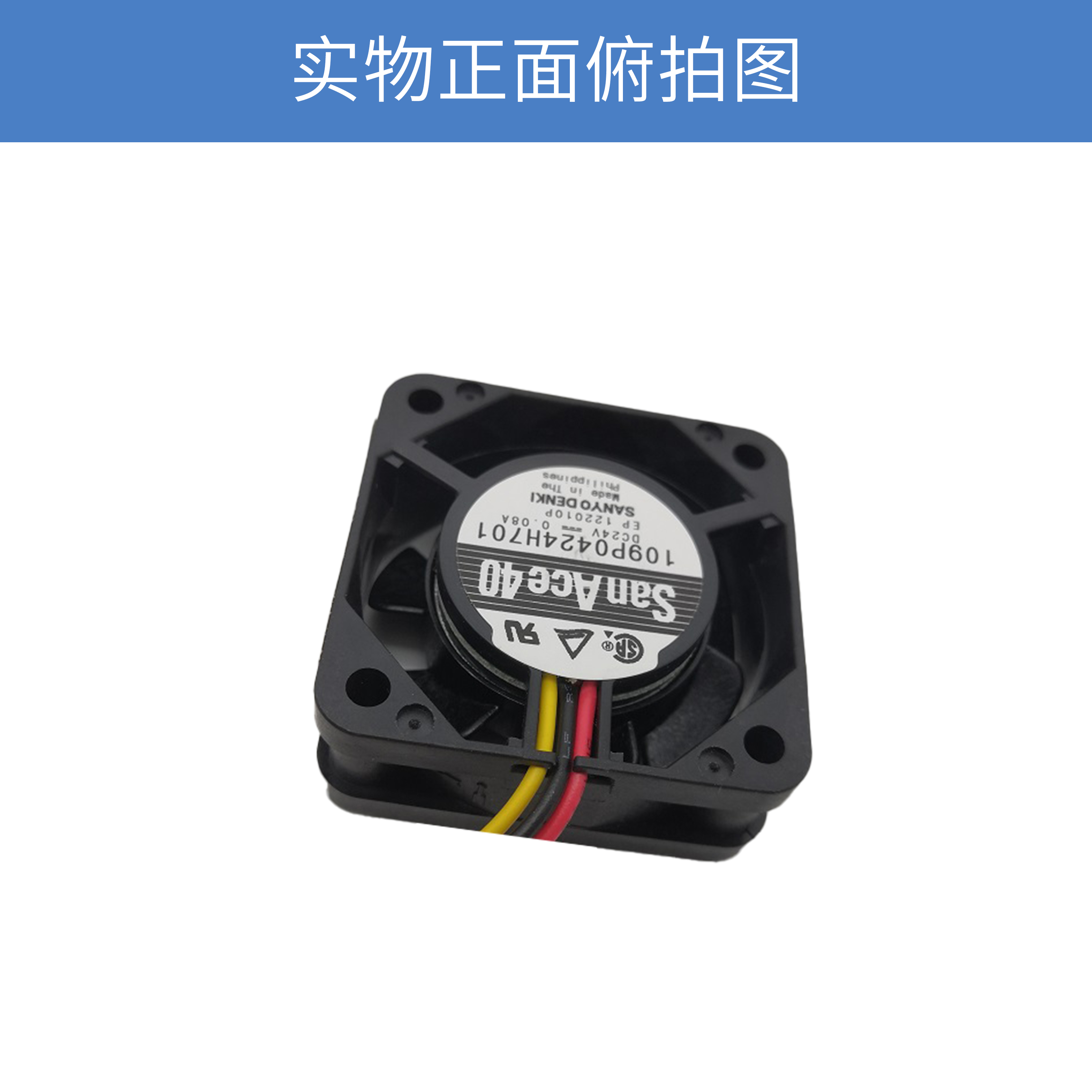

The SANYO DENKI San Ace 40 (Model 109P0424H701) is a high-performance axial cooling fan engineered for reliable thermal management in compact electronic systems. Its robust design, featuring a plastic frame and ribbed construction, ensures durability and efficient heat dissipation in demanding environments.

Key Specifications

Parameter	Value	Parameter	Value
Model No.	109P0424H701	Frame Size	40mm
Frame Thickness	15mm	Frame Material	Plastic
Rated Voltage	24V	Operating Voltage Range	20.4~27.6V
Rated Current	0.08A	Rated Input Power	1.92W
Rated Speed	7700 min?1	Max. Airflow	0.18 m3/min (6.4 CFM)
Max. Static Pressure	75.5 Pa (0.303 inchH?O)	Noise Level (SPL)	28 dB(A)
Operating Temperature	-20~+70°C	Expected Life	60,000h (60°C) / 90,000h (40°C)
Mass	32g	Sensor Type	Pulse Sensor
PWM Control	No	Ribbed Design	Yes

Application Scenarios

Industry	Typical Use Cases	Benefit
Data Centers	Server rack cooling, CPU/GPU thermal management	Ensures stable operation under high load
Telecommunications	Base station equipment, network switches	Maintains optimal temperature for sensitive components
Industrial Electronics	Control panels, power supplies, motor drives	Provides reliable cooling in harsh environments
Consumer Electronics	Gaming consoles, high-end PCs, audio equipment	Delivers quiet operation without compromising performance

Why Choose San Ace 40?

High Efficiency: Delivers 0.18m3/min airflow with minimal power consumption (1.92W).
Quiet Operation: 28dB(A) noise level ensures a peaceful environment.
Long Lifespan: Up to 90,000 hours at 40°C, reducing maintenance costs.

Robust Design: Ribbed frame enhances structural integrity and heat dissipation.
