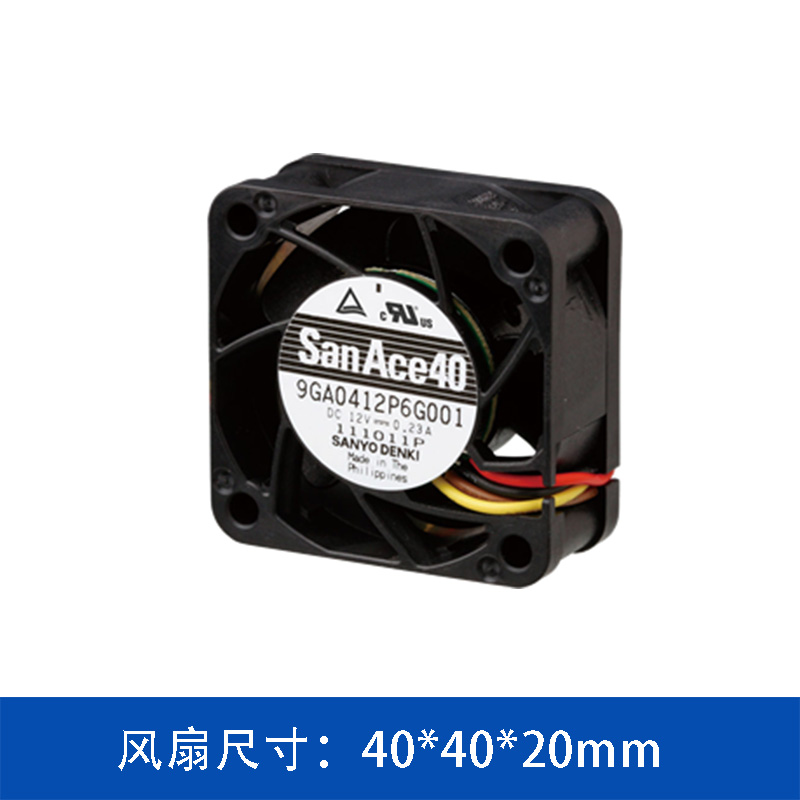

4020 12V Low Power Consumption Fan

9GA0412P6F001

Brand: SanAce (Japan sanyodenki)
Size: 40x40x20mm
Characteristics: Low power consumption, low noise, long lifespan
Signal line: 3-wire FG
Product description: The SANYO DENKI San Ace 9GA0412P6F001 is a 40x40x20mm 12V low power consumption DC fan. With a rated current of only 0.08A and PWM control function, it delivers 0.21m3/min max airflow. Ideal for energ
INQUIRY
暫無規格書

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承認書/規格書	型號	額定定壓	電壓范圍	額定電流	額定功率	轉速	最大風量		最大風壓			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	?/min	CFM	Pa	mmH2O	INH2O	DB-A
	9GA0412P6F001	12	10.2~13.8	0.08	0.96	8000	0.21	7.4	79.5	8.128	0.32	28

PRODUCT PRESENTATION

Product Overview

The SANYO DENKI San Ace 40 (Model: 9GA0412P6F001) is a high-efficiency, low power consumption DC axial flow fan designed for applications requiring reliable cooling with minimal energy usage. Part of the renowned San Ace series, this 40mm fan combines compact dimensions with advanced features like PWM speed control, allowing for precise thermal management.

With a rated current of only 0.08A and a power consumption of less than 1W, it is an ideal eco-friendly solution for battery-operated devices, small form factor PCs, and sensitive industrial electronics. The fan features a durable plastic frame and impeller, ensuring a long service life even in demanding environments.

Key Features

Low Power Consumption: Rated at only 0.96W, significantly reducing energy costs and heat generation.
PWM Control Function: Enables precise speed control via a 4-wire interface, optimizing noise and airflow based on temperature.
High Reliability: Designed with ball bearings (implied by the series standard) for long life, achieving 60,000 hours at 60°C.
Compact & Lightweight: The 40x40x20mm size and 35g mass make it easy to integrate into tight spaces.
Pulse Sensor: Provides tachometer output for rotation detection and fail-safe monitoring.
Ribbed Frame: Enhances structural integrity and installation stability.

Specifications

The following table details the technical performance data for the 9GA0412P6F001:

表格

Parameter	Specification	Parameter	Specification
Model No.	9GA0412P6F001	Frame Size	40 mm
Frame Thickness	20 mm	Frame Material	Plastic (PBT)
Rated Voltage	12 VDC	Operating Voltage Range	10.2 ~ 13.8 VDC
Rated Current	0.08 A	Rated Input Power	0.96 W
Rated Speed	8000 min?1 (RPM)	Max. Airflow	0.21 m3/min (7.4 CFM)
Max. Static Pressure	79.5 Pa (0.32 inchH?O)	Sound Pressure Level (SPL)	28 dB(A)
Operating Temperature	-20 to +70 °C	Expected Life	60,000 hrs (at 60°C) / 90,000 hrs (at 40°C)
Sensor Type	Pulse Sensor (Tachometer)	Control Function	PWM Control (4-wire)
Mass	35 g	Ribbed Frame	Yes

Performance Characteristics

Airflow vs. Static Pressure: The fan is optimized to provide a balance between airflow volume and static pressure, making it suitable for both open ventilation and pushing air through dense heat sinks.
Noise Levels: At 28 dB(A), the acoustic noise is kept to a minimum, making it suitable for office environments or noise-sensitive equipment.

Typical Applications

Due to its low power draw and precise control capabilities, the 9GA0412P6F001 is widely used in:

Industrial Automation: PLCs, servo amplifiers, and control panels.
IT & Telecommunications: Network switches, routers, and small servers.
Medical Equipment: Diagnostic devices and portable monitors.
Consumer Electronics: High-performance gaming consoles, 3D printers, and projectors.
Energy Storage: Battery management systems (BMS) where efficiency is critical.

Compliance & Standards

Eco Products: Meets SANYO DENKI's environmental standards.
Safety Standards: UL / CSA / EN compliant.
Environmental: RoHS Directive compliant.
